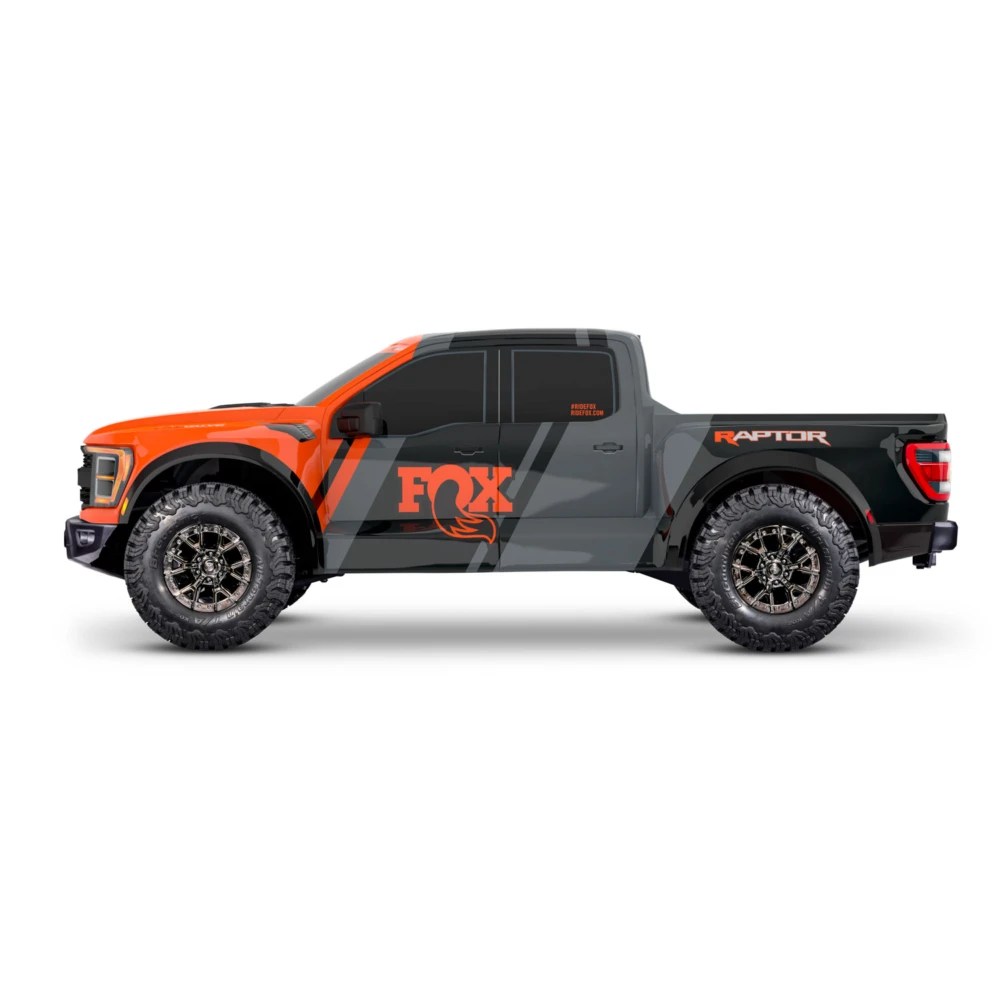

The Traxxas Ford Raptor R 4X4 Ultimate is a rugged, race-inspired short course truck built for aggressive off-road driving and serious performance. This Ultimate Edition stands apart with all new heavy duty premium aluminum components throughout the suspension and drivetrain, delivering unmatched durability, precision, and style. With its officially licensed Ford body, brushless power system, and clipless mounting system, the Raptor R Ultimate is ready to dominate the terrain straight out of the box.
Includes:
- (1) Traxxas Ford Raptor R 4X4 Ultimate (FOX2)
- (1) Velineon VXL-4s ESC
- (1) Velineon 540XL 2400 Kv Motor
- (1) TQi 2.4 GHz Radio System with Wireless Module
- (1) Quick Start Guide
- (1) Set of High Quality Maintenance Tools
Required to Complete:
- (1) 2s, 3s, or 4s LiPo Battery with iD connector
- (1) Compatible LiPo Charger (Traxxas EZ-Peak Live recommended)
- (4) AA Alkaline Batteries (for transmitter)
Features:
- Officially licensed Ford F-150 Raptor R Pro Scale clipless body with molded details
- LED lighting integrated into front and rear bumpers
- Reinforced clipless body system with secure and tool-free mounting
- Ultimate Edition with all new heavy-duty aluminum suspension components for maximum strength
- Color-matched 6061-T6 aluminum C-hubs, steering blocks, and rear hub carriers
- Aluminum GTR shocks with threaded bodies and TiN-coated shafts
- Aluminum center driveshaft for improved power transfer and durability
- VXL-4s waterproof ESC with real-time telemetry and programmable profiles
- Velineon 540XL 2400 Kv long-can brushless motor with 5 mm shaft
- TQi 2.4 GHz radio with wireless module and multi-model memory
- Factory-installed telemetry sensors and waterproof receiver box
- Traxxas Stability Management (TSM) for enhanced traction and control
- Heavy-duty suspension arms with steel toe and camber links
- Extended modular chassis with nerf bars and heavy-duty shock towers
- High-torque 2275 waterproof servo with aluminum center case
- Shaft-driven full-time 4WD with center differential (20M oil)
- Steel gear 32-pitch spur and sealed oil-filled front/rear differentials
- Oversized Maxx-duty driveshafts and 6 mm axles
- Ford replica wheels with licensed BFGoodrich All-Terrain KO2 tires
- Black oxide-coated hex hardware and sealed ball bearings throughout
Specifications:
- Scale: 1/10
- Top Speed: 60+ mph (with 4s LiPo)
- Skill Level: 2
- Weight: 6.62 lb (3.00 kg)
- Length: 24.98 in (637 mm)
- Width: 11.63 in (289 mm)
- Height: 8.91 in (226 mm)
- Wheelbase: 15.11 in (384 mm)
- Ground Clearance: 2.05 in (52 mm)
- Drive System: Shaft-driven 4WD
- Differentials: Hardened steel bevel, sealed, limited slip
- Gear Pitch: 32 pitch
- Servo: 2275 waterproof metal gear (347 oz-in @ 6.0V)
- Radio: TQi 2.4 GHz 2-channel with wireless module
- Motor: 540XL 2400 Kv sensorless brushless
- ESC: Velineon VXL-4s, 2s–4s LiPo compatible
- BEC: Selectable 6.0 or 7.4V
- Battery Compartment: 165 x 50 x 23/26 mm
The Ultimate Edition of the Traxxas Ford Raptor R is a premium short course truck built for drivers who demand more than just performance. With its heavy-duty aluminum components, high-output electronics, and signature Traxxas engineering, this model redefines toughness and style on the track or trail. If you’re looking for the highest standard in durability and driving experience, this is your Raptor.
